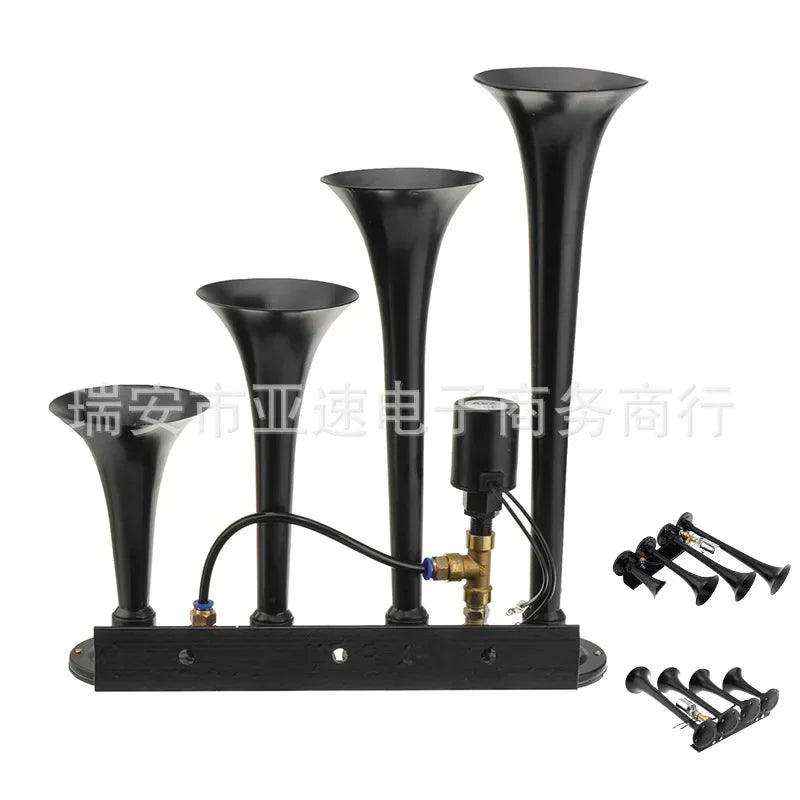

Pneumatic Truck Horn System with Four Tubes

Pneumatic Truck Horn System with Four Tubes

Rev up your vehicle's sound with our premium Pneumatic Truck Horn System with Four Tubes. Designed for functionality and durability, this horn system is ideal for all vehicle models equipped with air supply devices.

Key Features:

• Powerful Sound Output: Experience an impressive sound quality that ensures you are heard on the road.
• Wide Compatibility: Suitable for all vehicle models with air supply devices.
• High-Performance Relay: Requires a control relay working current of over 10A for optimal performance.
• Robust Construction: Designed to withstand extreme temperatures from -40°C to 80°C.
• Exceptional Longevity: Boasting a service life of over 100,000 cycles, this horn system promises reliability.
• Easy Maintenance: The horn's air source is directly linked to the air storage cylinder, ensuring consistent sound quality with minimal upkeep.

Installation Specifications:

• The main power line of the relay should be at least 2.5MM in cross-sectional area.
• The output line must not be less than 1.5MM.
• Ensure the negative (ground) wire has good contact for effective horn functionality.
• Maintain proper air pressure between 0.3 to 0.9MPa for the best performance.

Important Precautions:

• Regularly check and clean the filter screen of the solenoid valve to prevent blockage and ensure optimal sound quality.
• Please discharge water from the air storage cylinder frequently to prolong the solenoid valve's life.

Troubleshooting Tips:

If you experience any issues with your horn, follow these steps:

• Check the fuse for any signs of damage or blowing.
• Test the horn switch and ensure proper contact; intermittent sound often indicates contact failure.
• If the horn is completely silent, use a multimeter to check for electrical flow at the horn plug.
• Adjust the adjusting nut on the horn if needed. If problems persist, consider a replacement.

Equip your vehicle with the Pneumatic Truck Horn System with Four Tubes today and ensure you make an impact wherever you go!
